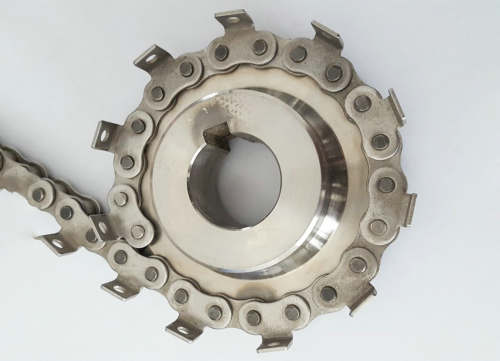

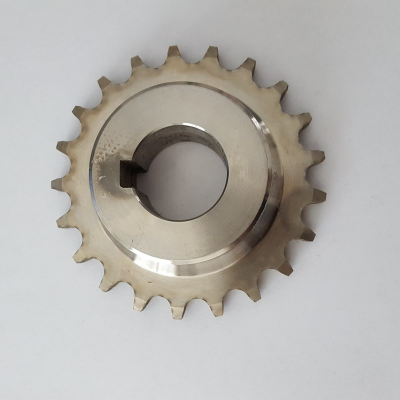

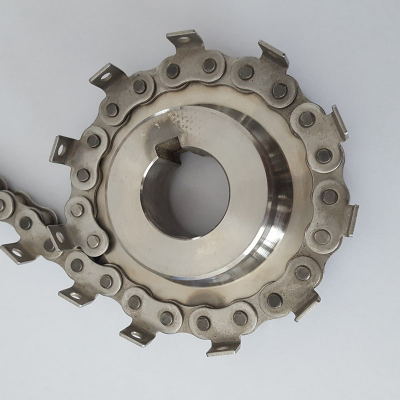

2016年河北的吳總在我廠購買了200個齒形鏈輪

 榮達專業生產大量現貨各種型號標準 非標準高速靜音齒形鏈條 定制高速無聲齒輪

高速 無聲 大中心距 高速高載 變速高載 扭矩大 精準度高 耐高溫 優質靜音齒形傳動鏈非標定制配套高速齒輪

應用與簡介：

（1）無聲齒形鏈條具有的優點：無聲，靜音，高速，精度高，承載抗拉伸能力強，使用壽命長，比同步帶壽命長，比滾子鏈條噪音小，比一般的輸送帶輸送面平整，傳送精度高，精準度高，誤差小。

（2）現在靜音無聲齒形鏈條應用越來越廣泛，高速無聲靜音低噪音鏈條齒輪應用越來越普遍，有的人把原來的同步帶都換成這種無聲齒形鏈條，有的人使用滾子鏈條噪音太大，也在改成無聲齒形鏈條齒輪。有的高精密要求傳送傳遞精度高的輸送線也在采用無聲齒形鏈條齒輪，好多鍛造行業快速的傳送鍛造件也在采用無聲齒形鏈條，在輸送線上有好多需要平穩輸送的也在采用無聲齒形鏈條作為輸送帶來輸送物件。目前齒形鏈條有一秒16米到30米，無聲齒形鏈條有單軸的，有雙軸的，節距有9.525毫米的型號CL06 SC3,12.7毫米的CL08 SC4 C4,15.875毫米的無聲齒形鏈條CL10,SC5 ，19.05毫米的CL12 SC6 ,25.4毫米的CL16,SC6;31.75毫米齒形鏈條CL20 SC10 ,無聲齒形鏈條38.1毫米CL24 .

（3）無聲齒形鏈條的寬度非標定做，齒形鏈條的寬度是鏈條片的數量決定的。齒形鏈條的長度非標定做。

無聲齒形鏈條采用需要提供的數據資料：

   1，無聲齒形鏈條的節距

 2，無聲齒形鏈條的片數

   3，無聲齒形鏈條的長度

   4，無聲齒形鏈條的導向形式、

   5，無聲齒形軸頭照片

無聲齒形鏈條分類

   1，雙軸的齒形鏈條有HPC KH HDL HV RPV RP SC

   2，單軸的齒形鏈條有CL06 CL08 CL10 CL12 CL16 CL20 CL24

齒形鏈條適合的范圍

   1，同步帶改造，同步帶改成無聲齒形鏈條。

   2，高速低噪音環境需要無聲齒形鏈條。

   3，傳送精度高的地方需要無聲齒形齒輪。

   4，輸送線需要無聲齒形鏈條。

 5，折彎機用齒形鏈條

   6，石膏機械用無聲齒形鏈條。

公司簡介：

    榮達公司以質量求生存，以信譽求發展，主要生產齒形鏈條，無聲鏈帶，哈瓦鏈條，同時定制配套齒輪，鏈板輸送機，高速無聲鏈板輸送機，鏈板輸送帶，鏈條輸送機，高速無聲齒形鏈條輸送機，玻璃加料機，玻璃混料機，稱重式包裝機，網帶烘干機，玻璃機械，馬蹄鏈（長城網帶），輸送網帶，金屬網帶，網帶輸送機，鏈桿輸送帶，鏈桿輸送機，乙型網帶，冷凍機螺旋網帶，螺旋網帶輸送機，螺旋塔，橫桿鏈條，洗碗機網帶，清洗機鏈板，排屑機鏈板，餅干機網帶，擋板及提升機鏈板，平板鏈，大節距鏈條，大滾子鏈條等，制造各種非標鏈條，非標輸送帶及鏈輪，平頂鏈條鏈輪，剪刀片等可根據客戶需求生產定做各種流水線

  榮達公司注重對材質，熱處理等工藝環節的質量控制，產品質量不斷提高，以用戶至上為宗旨、以尊重人才，以科學技術求發展，開拓創新為您提供高品質的產品，竭誠為廣大用戶服務

鏈條英文叫做Silent tooth chain

Silent  Chain Technology for the glass industry

High quality external contact silent chain   chain is ideal for applications where heavy loads (50 to 6000 horsepower) are to be transmitted at moderate to high speeds. It is also ideal where compact design is important. features a pin and rocker joint which reduces friction and provides pitch elongation through its rolling action. This results in a reduction of chordal action and a significant increase in horsepower capacity.

Silent chain is an inverted tooth chain offering low to moderate horsepower for applications. The exclusive rocker joint eliminates friction during chain articulation permitting high rotative speed with less wear and heat

High speed gear chain (Hawa chain) transmitting power for 50~6000 horsepower, more than 3000 rpm to high speed applications, compact design, it is an ideal transmission chain chain. She is a kind of high precision gear chain belt, both the smooth and compact chain drive, economic life and long. Characterized by a pin shaft hinge and rolling action between tiles to reduce friction and realize pitch elongation, the result is the effective growth of power transmission capacity and reduce the damage. The polygon effect after shot peening and prestressed chain plate processing, which has larger bearing capacity with a power capacity of three. In the times of the silent chain, with high speed range at high speed roller chain work ability decreased sharply, is the ability to continuously improve the Hawar chain. So the Hawa chain has on many occasions beyond all dispute, remarkable advantages Applicable to all applications of high speed prime mover, such as diesel and gas turbine power transmission and so on
